Hydrocolloid in Gluten-Free Pasta: Engineering the “Fake” Gluten Network

(Bottom Line Up Front)

Gluten-free (GF) flours lack the gliadin-glutenin protein network required for viscoelasticity. To replicate the “al dente” bite and prevent disintegration during boiling, food engineers must construct an artificial structural matrix using hydrocolloids (typically Xanthan Gum, Guar Gum, or Psyllium) at a concentration of 2–3% w/w. These polysaccharides bridge the rheological gap by increasing water-holding capacity and encapsulating starch granules, enabling the transition from a simple viscous paste to a cohesive, elastic dough capable of withstanding thermal stress.

Key Takeaways

• The Rheological Deficit: Legume and rice flours possess viscosity (flow) but lack elasticity (snap-back). Hydrocolloids artificially supply the Elastic Modulus.
• Dosage Sensitivity: The functional window is narrow (2–3%). Exceeding this threshold results in a rubbery, cohesive defect known as “gumminess,” while under-dosing leads to high cooking loss (cloudy water).
• Dispersion Criticality: Hydrocolloids are prone to “fish eye” formation due to rapid surface hydration. High-shear mixing or oil-slurry dispersion is mandatory for efficacy.
• Clean Label Evolution: Psyllium husk (arabinoxylan) is displacing synthetic-sounding gums due to its superior viscoelastic mimicry and consumer-friendly labeling.
• Process Synergy: Unlike wheat pasta, gluten-free formulations often require hot extrusion (steam injection) to pre-gelatinize starch and activate the hydrocolloid network before drying.

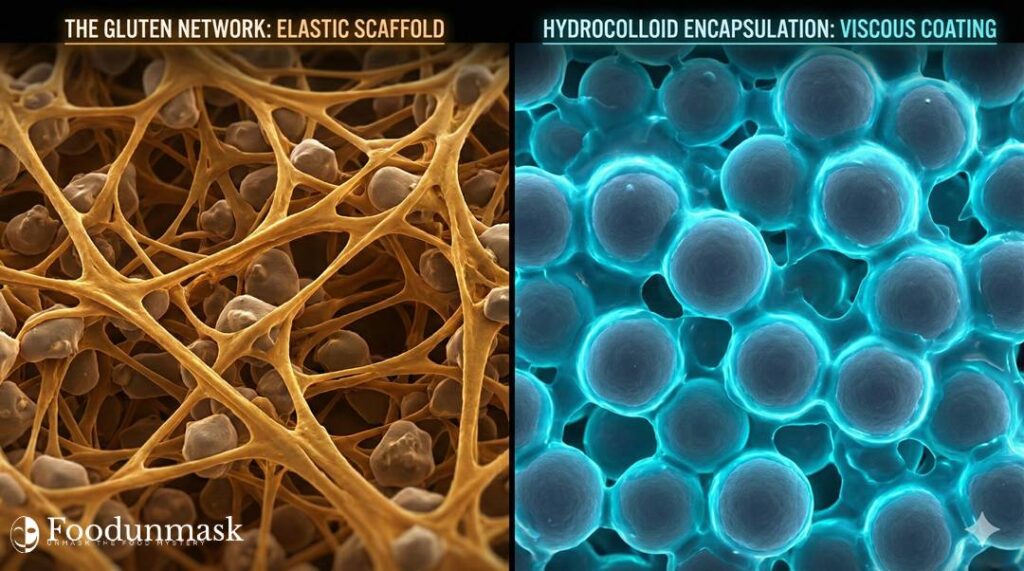

The Mechanism: Constructing Viscoelasticity

In wheat pasta, you can read my pasta manufacturing article to understand how gluten acts as a continuous protein network that entraps starch granules. In gluten-free matrices, the “flour” is essentially non-functional protein and starch. Without a binder, boiling water penetrates the starch granules, causing them to swell, burst, and leach amylose, resulting in pasta that disintegrates into mush.

Hydrocolloids function as structural mimics. They are long-chain polysaccharides that hydrate to form a tangled network around the starch granules.

• Viscosity vs. Elasticity:
  • Viscosity (Loss Modulus): The resistance to flow. Rice flour paste is viscous.
  • Elasticity (Storage Modulus): The ability to recover shape after deformation. This is what GF flour lacks.
  • The Fix: Anionic gums like Xanthan interact with water to increase the storage modulus, creating a “pseudo-plastic” fluid that behaves like a solid at rest but flows under shear (extrusion).

Hydrocolloid Selection Matrix

Hydrocolloid	Origin	Functionality	Optimal Dosage	Pros/Cons
Xanthan Gum	Microbial (X. campestris)	High viscosity at low shear; pseudo-plastic.	0.5% – 2.0%	Pro: Excellent binder. Con: “Snotty” texture if overdosed.
Guar Gum	Plant Seed (Cyamopsis)	Water binding; economical thickener.	0.5% – 1.5%	Pro: Cost-effective. Con: Less elastic than Xanthan; typically used in blends.
Psyllium Husk	Plant (Plantago)	High swelling; mimics gluten viscoelasticity.	2.0% – 4.0%	Pro: Clean label; fiber claim. Con: Can darken color.
HPMC (hydroxypropyl methylcellulose)	Chemical Modification	Thermal gelation (forms gel when hot).	1.0% – 2.0%	Pro: Strongest structure during boiling. Con: “Chemical” label.

---

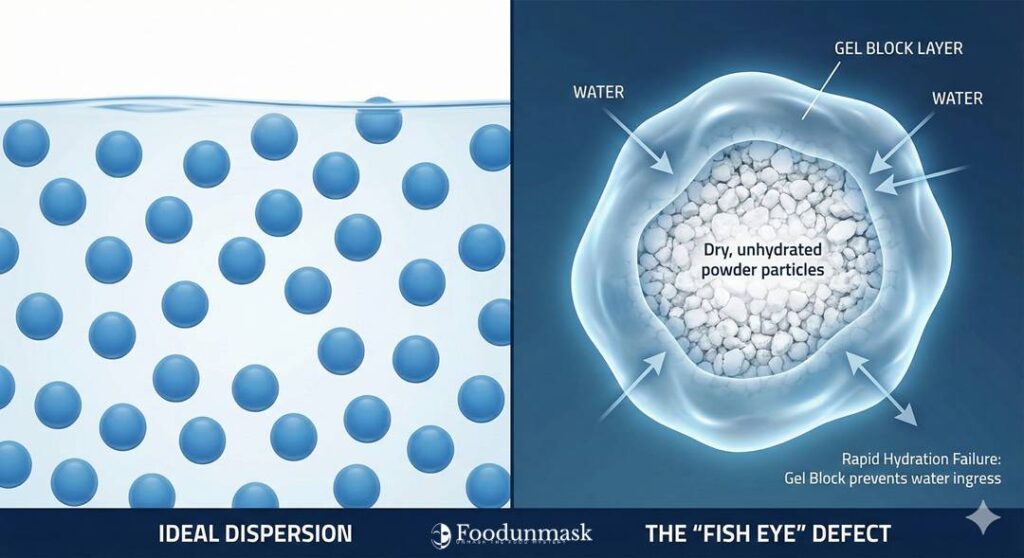

The Manufacturing Bottleneck: The “Fish Eye” Phenomenon

A critical failure point in gluten-free pasta production is improper hydrocolloid hydration. Because these gums are intensely hydrophilic, they suffer from case-hardening.

1. Water contacts the gum particle.
2. The surface hydrates instantly, forming an impermeable gel layer.
3. The dry powder core remains locked inside.
4. Result: “Fish eyes”—gelatinous lumps in the pasta that create weak points and dissolve during cooking.

[Practitioner’s Corner]: The Dispersion Protocol

“To guarantee 0% fish eyes without relying on expensive high-shear vacuum mixers, use the ‘Sacrificial Carrier’ method:

1. Dry Blending: Pre-blend the gum with the flour at a 1:10 ratio. The flour particles physically separate the gum particles, allowing water to reach the entire surface area of the gum simultaneously.
2. Oil Slurry: If your formulation allows fat, disperse the gum in oil first. Oil does not hydrate the gum; it coats it. When this slurry hits the water, the oil disperses, and the gum hydrates uniformly.”

The Shift to Psyllium & Pre-Gel Starches

Consumers are increasingly rejecting “Gum” on ingredient labels. In November 2025, the industry standard is shifting toward functional fibers and physically modified starches.

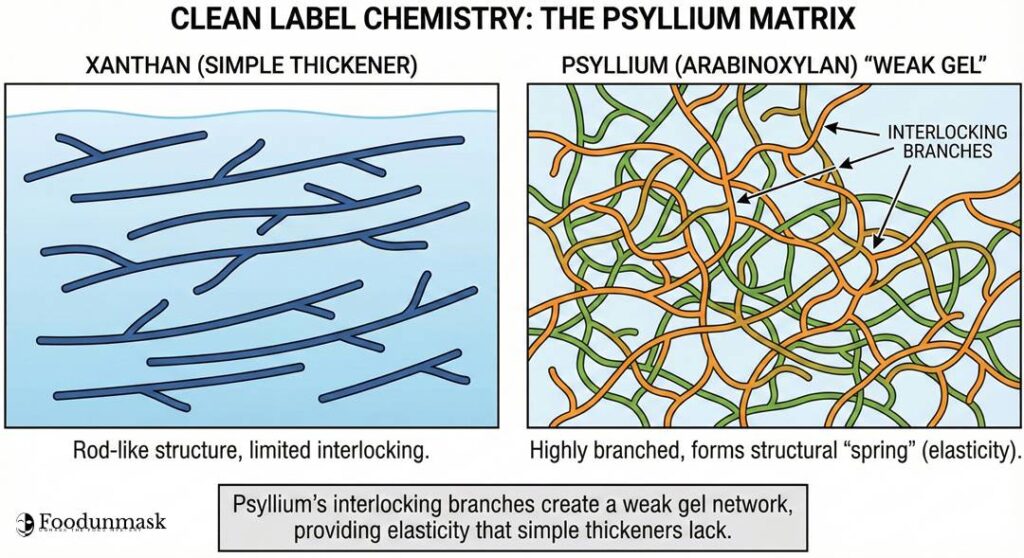

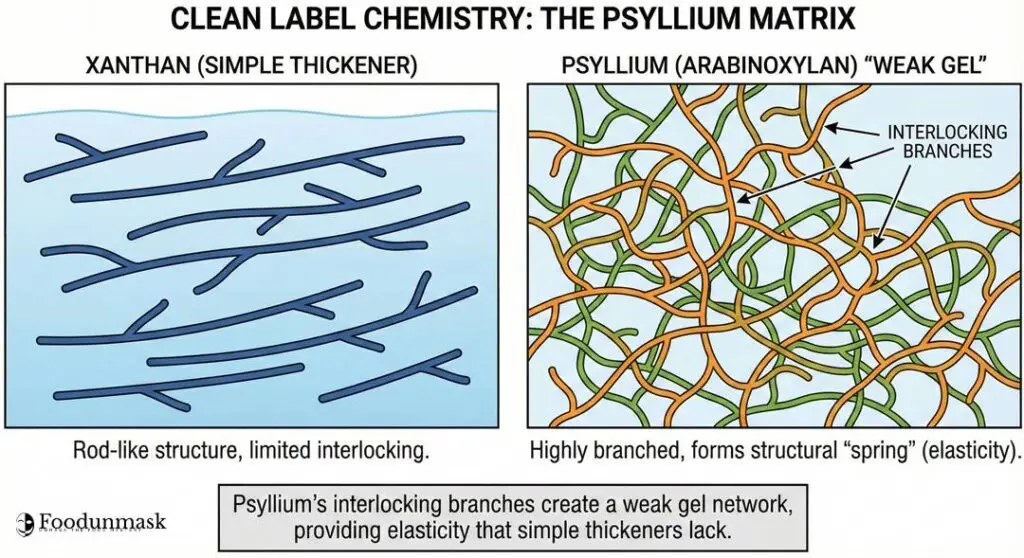

The Psyllium Advantage

Psyllium husk contains arabinoxylans, highly branched polysaccharides that absorb up to 40x their weight in water. Unlike Xanthan (which is primarily a thickener), Psyllium creates a weak gel structure that closely mimics the rheology of gluten.

• Operational Note: Psyllium doughs are less sticky and more machinable in extruders than Xanthan doughs, reducing friction and energy costs.

Pre-Gelatinized Starches

Using “cooked” flours (e.g., pre-gelatinized rice or banana starch) allows the manufacturer to create binding without additives. These starches have been thermally processed to break hydrogen bonds, making them cold-water soluble. They act as the “mortar” between the raw starch “bricks.”

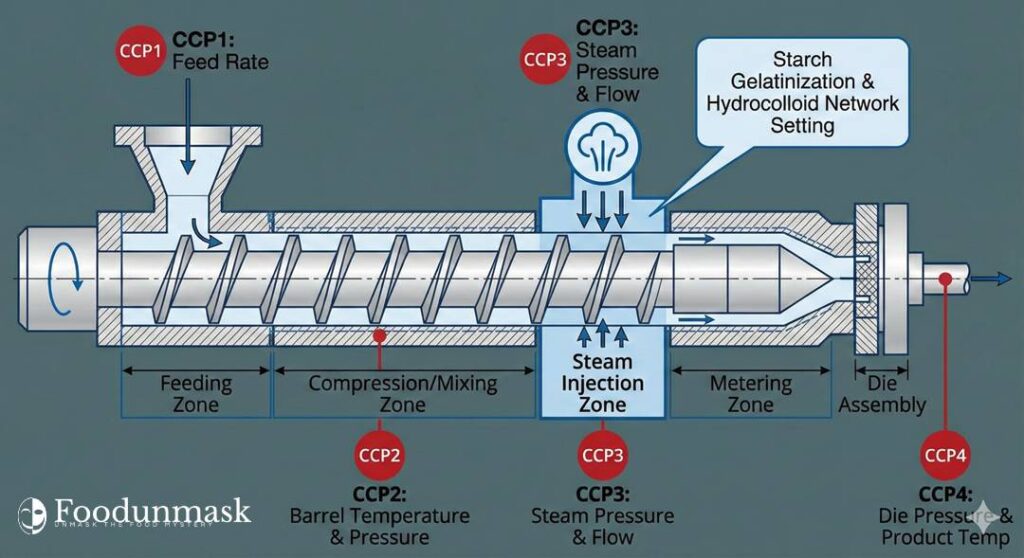

Synergy with Thermal Processing (Cooking Extrusion)

The synergical interaction between the hydrocolloid and the extrusion process is the final determinant of quality.

• Standard Wheat Process (Cold Extrusion): Temp < 50°C. Goal: Preserve protein structure.
• Gluten-Free Process (Hot/Cooking Extrusion): Temp 80°C – 100°C. Goal: Build Structure.

In gluten-free pasta, we often inject steam directly into the extruder barrel.

1. Gelatinization: The heat + moisture swell the native starch granules.
2. Network Activation: The hydrocolloid reaches its peak hydration temperature (critical for HPMC or certain methylated celluloses).
3. Setting: As the pasta exits the die, the retrogradation (recrystallization) of the starch begins immediately, locking the hydrocolloid network in place before the product enters the dryer.

[Regulatory Alert]: Standard of Identity & Labeling

• 21 CFR 139.110 (Macaroni products): Strictly defines pasta as wheat-based. Gluten-free products are non-standardized foods.
• Labeling: You cannot simply call it “Pasta” without qualification in many jurisdictions; it must be “Gluten-Free [Source] Pasta” or “Macaroni Product.”
• Hydrocolloid Limits: While many gums are GRAS (Generally Recognized As Safe), specific limits exist for certain categories: E.g., 21 CFR 172.874 for Hydroxypropyl methylcellulose (HPMC).
• Disclaimer: All formulations and processes must be validated by a qualified ‘Process Authority’ or food safety specialist before commercialization.
